High Wear Resistant Polyurethane Silk Screen Printing Squeegee
Squeegees are an essential tool for screen printing, probably the most important piece of equipment besides the actual screen! Shanghai SRING cooperated factory is established in 1988, with nearly 20 years experience, our factory imported the advance equipment, raw material from Europe and United states. With more than 300 skilled workers, the squeegees are well established in the world market.
A brief description of polyurethane squeegee blade/PU squeegee blade for silk screen printing
Polyurethane squeegee blade/pu squeegee blade for silk screen printing is used to force the inks through the screen and help achieve an even print, it is important factors in getting sharp, clear Prints.
Polyurethane squeegee blade/pu squeegee blade for silk screen printing will control ink flow through fine, detaile stencils increasing resolution and overall print quality.
A blunt or rounded blade edge will cause the ink to smear because it generally pushes more ink through the mesh.
Some high quality polyurethane squeegee blade/pu squeegee blade for silk screen printing for screen printing are actually made round or 'bull nosed'. For most standard textile screen printing applications a rectangular cut edge squeegee is best.
Hardness scope & Color
| Grade | Shore | Color | Common Color Sample |
| PU1 | 45-50 | Transparent | |
| PU2 | 50-55 | Light Yellow | |
| PU3 | 55-60 | Light Red | |
| PU4 | 60-65 | Red | |
| PU5 | 65-70 | Light Green | |
| PU6 | 70-75 | Green | |
| PU7 | 75-80 | Blue | |
| PU8 | 80-85 | Coffee | |
| PU9 | 85-90 | Light Brown | |
| PU10 | 90-95 | Pink | |
Hardness Selections
Red, Soft
PU1-PU4 | Suitable for low viscosity ink printing, low density or tough surface printing. |
Green, Medium
PU5-PU6 | High pressure resistance. Suitable for high or low viscosity ink or high density surface printing. Could easily control the ink amount and assure the precision of the printing. |
Blue, Hard
PU7-PU10 | Highest pressure and strongest ink solvent resistance. Could easily control the ink amount and get the highest quality printing. |
Size Selections
| Length | Width | Thickness |
| 2450mm100” | 9.5mm-320mm | 1mm-30mm |
| 3200mm126” |
| 3660mm144” |
| 4000mm157” |

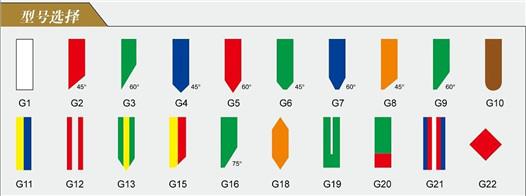

Edge Selection:
Squeegee for Screen Printing Specification:
| Material | TDI, MDI, PPG, PTMG,PUetc. |
| Color | as requested |
| Hardness | 50-95(Shore A) |
| Density | 1.12-1.25g/cm3 |
| Tensile Strength | 25-55Mpa |
| Tear Strength | 85-155KN/M |
| Elongation | 450-650% |
| Impact Elasticity | >20-30% |
| Tolerance | 0.1-0.3mm |
| Working Temperature | 120°C(max) |
| Surface Finish | One side or both |
